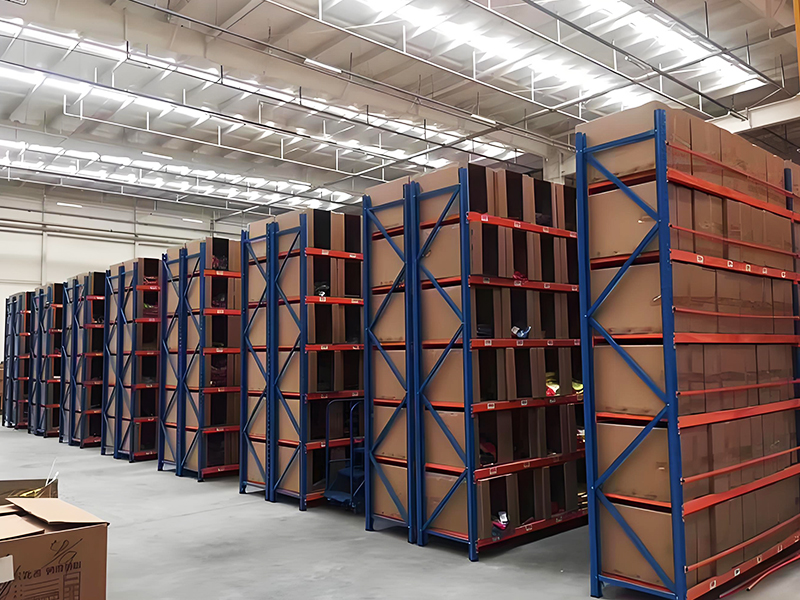

Racking system
The gold standard for high-capacity warehouse storage. Features a fully assembled structural framework utilizing interlocking upright frames and heavy-duty box beams to deliver immediate 100% selectiv
Contact Us
📞
+86-182-6652-0532
✉️
john@mounttai.net
📍
Room 2703, Building B, Tianlong International Building, Taishan District
Product Details
| No | Category | Product Name | Description | Load Capacity | Technical Material & Dimensions | Surface & Safety Specifications | Target Applications |

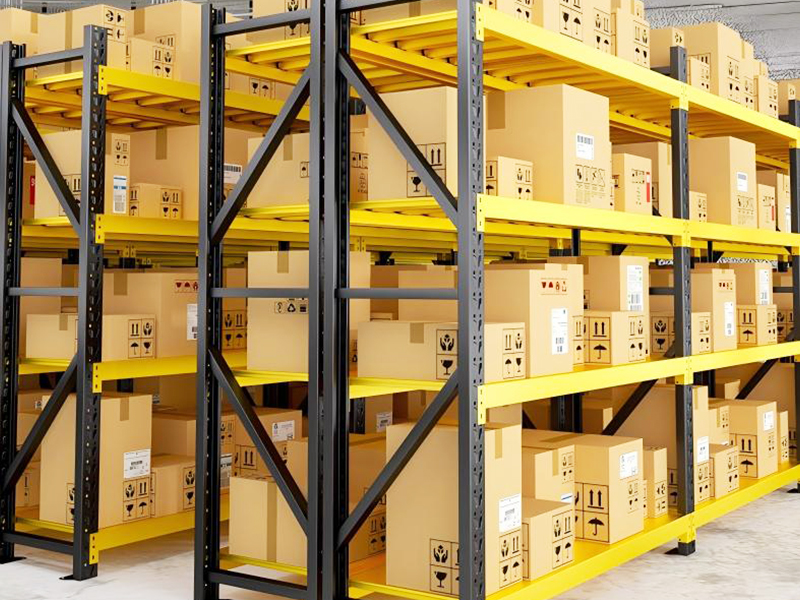

| 1 | HEAVY-DUTY INDUSTRIAL RACKING | Heavy-Duty Selective Pallet Racks (Beam Racks) | The gold standard for high-capacity warehouse storage. Features a fully assembled structural framework utilizing interlocking upright frames and heavy-duty box beams to deliver immediate 100% selectivity for efficient forklift handling. | 1000kg to 5000kg per Beam Level | Upright Profiles: 80×60mm / 90×70mm / 100×70mm. Beam Profiles: 80×50mm to 180×50mm. | Premium Q235 cold-rolled steel; water-resistant and rust-proof electrostatic powder coating; boltless automatic safety pins. | General commercial warehousing; manufacturing raw material storage; third-party logistics (3PL) hubs; heavy industrial bulk stock |
| 2 | HEAVY-DUTY INDUSTRIAL RACKING | Structural Steel Platforms | Maximize facility vertical air space without expensive building expansions. Engineered with independent heavy H-beam columns and interlocking steel floor plates to safely add expansive secondary and tertiary operational space. | 200kg to 2000kg per Square Meter (m²) | Solid H-beam columns combined with interlocking primary and secondary rolled beams. | Fully compatible with manual hydraulic pallet jacks; built-in 1200mm protective perimeter guardrails; solid base kick plates; structural access staircases. | Manufacturing assembly zones; automotive component supply centers; heavy parts distribution channels; integrated office-over-warehouse designs |
| 3 | HEAVY-DUTY INDUSTRIAL RACKING | Multi-Tier Rack-Supported Mezzanines | An engineered compound racking configuration where the underlying storage rack frames act as the direct load-bearing pillars for upper-level walkways. Ultimate design for running bulk pallet storage on the ground and fast manual picking upstairs. | Customized Load Capacity per Level | Custom-built 2-tier to 3-tier matrix configurations. | Walkway Options: Interlocking galvanized safety grating; punched steel planks; or high-density industrial wood panels. | E-commerce fulfillment hubs; high-density manual order-picking lines; automotive parts distribution; pharmaceutical component storage |
| 4 | HIGH-DENSITY & SPACE-OPTIMIZED RACKING | Very Narrow Aisle (VNA) Racks | Compress facility footprint by narrowing operating corridors up to 50% compared to traditional setups. Relies on floor-mounted guide rails and specialized 3-way turret trucks to maintain fast 100% individual pallet access. | High-Capacity Design per Beam Level | Aisle Width: Compressed down to 1600mm–2000mm. Optimized for vertical high-bay clearances spanning 8m to 15m. | Heavy floor-mounted steel guide rails (angle profiles or solid guard panels) to shield uprights from mechanical impact. | High-throughput logistics hubs; space-restricted distribution centers; massive uniform inventory operations where floor area is premium |
| 5 | HIGH-DENSITY & SPACE-OPTIMIZED RACKING | Double-Deep Pallet Racks | An economical high-density system constructed by placing selective pallet rack rows four deep (back-to-back structures). Eliminating redundant cross-operating corridors heavily amplifies total pallet storage capacity. | High-Capacity Multi-Level Beam Loading | Increases warehouse floor space utilization to approximately 42%. Requires a 3.3-meter operating corridor. | Inventory Rotation: LIFO (Last-In First-Out) material flow. Operates via specialized deep-reach or pantograph-style forklift units. | Standardized high-volume inventories; identical batch storage; medium-turnover warehouse setups |

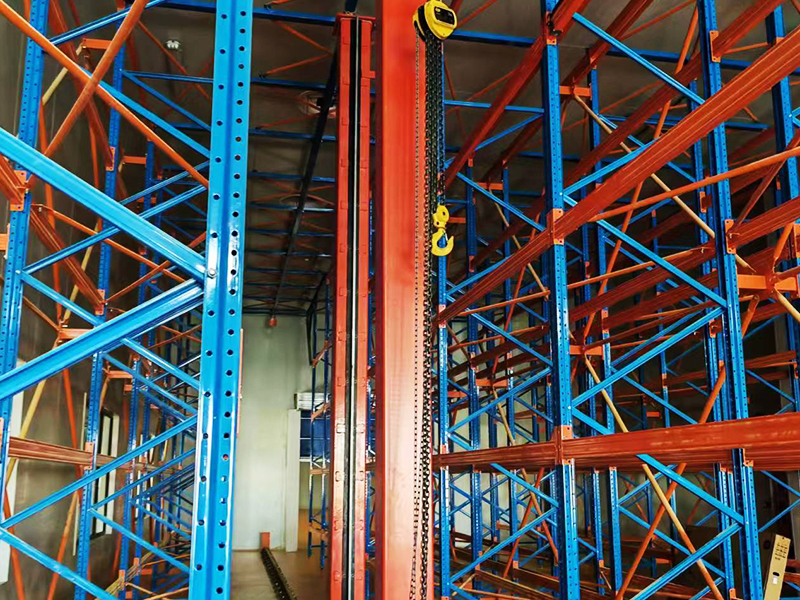

| 6 | HIGH-DENSITY & SPACE-OPTIMIZED RACKING | Drive-In / Drive-Through Block Racking | An intensive block-storage matrix where forklifts travel directly inside the structural racking lanes to deposit or retrieve inventory on continuous side support rails completely replacing traditional intermediate cross aisles. | High-Density Bulk Loading per Level | Provides up to 85% volumetric space utilization. Capped at a safe depth threshold of 7 pallets per single entry lane. | Structural Height Parameters: Safely installed up to a maximum height of 10 meters. Supports LIFO (Drive-In) or FIFO (Drive-Through). | Temperature-controlled cold storage; food and beverage processing warehouses; high-volume seasonal inventory; operations with low SKU counts |
| 7 | DYNAMIC & AUTOMATED RACKING | Semi-Automated Radio Shuttle Racks | Deep-lane high-density storage paired with intelligent automation. Forklifts place cargo on the outer rails and remote-controlled wireless shuttle carts autonomously transport the pallets deep inside the lanes cutting collision risks. | High-Capacity Automated Allocation per Level | Wireless shuttle track integration with rail dimensions matched to standard industrial pallets. | Seamlessly programmable for both FIFO and LIFO operational layouts. Fully compatible with WMS WCS and AGVs. High-capacity lithium battery packs. | Industrial cold chain distribution; bulk chemical storage; large-scale pharmaceutical warehouses; high-intensity manufacturing buffer zones |
| 8 | DYNAMIC & AUTOMATED RACKING | Gravity Flow Racks (Live Racking) | Dynamic racking lanes integrated with heavy-duty roller track beds. Under gravitational pull depositing a pallet at the high loading face automatically glides the inventory forward smoothly to the pick face on the opposite side. | Heavy-Duty Pallet Roll Capacity per Level | Pre-engineered roller track incline matrix between 3° to 5° tilt gradient angle. | Guarantees strict FIFO (First-In First-Out) material rotation. Outfitted with dynamic inline speed controllers automatic separator plates and safety brake rollers. | Perishable food storage; time-sensitive expiration goods; pharmaceuticals; high-volume picking lines |
| 9 | DYNAMIC & AUTOMATED RACKING | Automated Storage & Retrieval Systems (AS/RS) | Fully automated vertical infrastructure integrating high-bay racks with computer-guided stacker cranes conveyor loops and real-time automation software for extreme inventory precision without manual forklift operation. | Maximum High-Bay Tier Limits per Level | Unitized/Rack-Clad (rack functions as building skeleton >12m) or Separated (standalone interior racking matrix <12m). | PLC automation control loops; dynamic barcode scanning; size/profile safety detection; real-time monitor interfaces. | Mega-distribution centers; automated manufacturing inventory hubs; high-capacity e-commerce sortation facilities; high-budget enterprise operations |

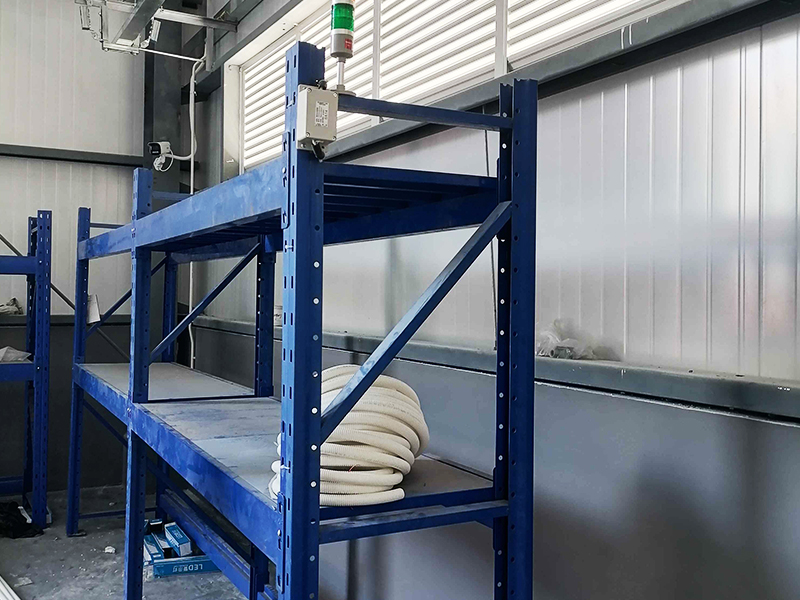

| 10 | COMMERCIAL LIGHT & SPECIALTY RACKING | Boltless Light-Duty Shelving | Tool-free plug-in modular shelving designed for rapid deployment. Ideal for hand-loaded boxes parts bins and loose items requiring effortless toolless layer profile adjustments. | 75kg to 300kg per Layer | Length spans: 1.5m to 2m options. | Interlocking vertical upright frames profile step beams and drop-in sheet steel layer boards. Height intervals adjustable at 50mm increments. | E-commerce manual picking racks; corporate archives; office supply rooms; auto workshop tool storage; retail backrooms |
| 11 | COMMERCIAL LIGHT & SPECIALTY RACKING | Boltless Medium-Duty Racking | A robust mid-tier shelving line bridging the gap between light shelving and heavy pallet racking. Combining visual appeal with structural rigidity it handles heavy hand-loaded bins cartons and bulk loose goods. | 250kg to 500kg per Layer | Adjustable on a flexible 50mm pitch increment. | Modular plug-in design without bolt connections. Smooth powder-coated finish with full corporate color matching options. | Supermarket storage areas; electronic component facilities; corporate parts depots; light industrial workshops |
| 12 | COMMERCIAL LIGHT & SPECIALTY RACKING | Automotive Component Specialty 4S Racks | Turnkey component-matched racking configurations designed specifically to house automotive parts. Features integrated soft protective shielding to prevent surface scratches or damage to specialty car components. | 200kg to 400kg per Beam Level | Tailored profiles for windshields tires wheel hubs body panels exhaust pipes bumpers and shock absorbers. | Soft rubber-sleeve windshield bars; body panel slot dividers; angled rollers. Paint finishes matched exactly to automotive corporate identity (CI) color profiles. | Dealership 4S service workshops; auto repair hubs; specialized car manufacturing parts rooms |
| 13 | COMMERCIAL LIGHT & SPECIALTY RACKING | Slotted Drawer Mold & Die Racks | Rugged mechanical safety racking equipped with heavy-duty roller-bearing sliding drawer layers giving overhead factory cranes immediate uninhibited vertical access to heavy tooling dies and machinery molds. | 800kg to 3000kg per Drawer Layer | Standard Type: 65% horizontal drawer extension (800-1000kg). Fully-Open Type: 95% horizontal drawer extension (1000-3000kg). | Mechanical safety locks prevent multiple drawers from opening simultaneously maintaining system balance. Heavy-duty reinforced Q235 steel channels. | Injection molding plants; tool-and-die manufacturing facilities; metal stamping shops; heavy machinery maintenance bays |
| 14 | COMMERCIAL LIGHT & SPECIALTY RACKING | Industrial Cantilever Racks | Column-free front profile racks built specifically for loading exceptionally long ring-shaped tubular or irregular materials that cannot be contained by traditional front rack beams. | Up to 1000kg per Cantilever Arm | Up to 1500mm cantilever arm lengths. Built up to 2m height for manual access and up to 6m for heavy forklift handling. | Available in single-sided (wall placement) or double-sided central configurations. High-strength vertical post bases. | Timber and lumber storage yards; steel piping and tubing depots; PVC conduit storage; sheet metal profiles; long aluminum extrusions |
| 15 | COMMERCIAL LIGHT & SPECIALTY RACKING | Portable Stacking & Nesting Racks | Mobile flexible steel frames that convert standard open floors into temporary racking blocks. Stacks vertically when loaded to handle seasonal inventory surges and nests compactly together when empty to save floor space. | Max Stack Load Capacity of 3000kg | Fits standard 1210 and 1310 pallets with accessible 4-way forklift entry corridors. | Removable square steel corner posts; detachable heavy wire mesh side enclosures; forklift guidance tracking paths. Safely stackable up to 4 units high. | Temporary or overflow seasonal warehouses; industrial transit systems; bulk container shipping; a dynamic factory floor re-allocations |
| 16 | COMMERCIAL LIGHT & SPECIALTY RACKING | Industrial Steel Pallets | High-strength all-metal horizontal platform bases engineered as heavy-duty long-lasting alternatives to wood or plastic pallets. Built to withstand rough forklift handling and extreme weight inside heavy-duty storage racks. | Extreme Static and Dynamic Limits per Unit | Manufactured from high-grade galvanized steel sheets or hot-rolled structural steel shapes. | High-penetration CO2 gas shielded arc welding reinforced with heavy-duty structural riveting. Galvanized or impact-resistant powder coating. | Heavy manufacturing facilities; steel processing plants; chemical shipping lines; heavy-duty beam rack systems |
